LBD Series of mine explosion-proof Joint Vulcanizing Press
Short Description:
LBD series of mine explosion-proof vulcanizing press is developed by the company’s new vulcanizing press
LBD Series of mine explosion-proof Joint Vulcanizing Press
LBD series of mine explosion-proof vulcanizing press is developed by the company’s new vulcanizing press, explosion-proof type “Exd I”. It with high-tech automatic explosion-proof electronic control box, easy to operate, reliable, easy handing, suitable for coal mines with methane or coal dust explosion hazard mixture. Working environment is relatively wet, relatively large dust and lots of relatively narrow, inclined working face. It can complete a variety of conveyor belt vulcanized joint work. It is best ideal machine for belts vulcanized with relatively poor working conditions.
We are also can design and manufacture the machine by customers requirements.
Specification and Type:
According to applied belt width: 500,650,800,1000,1200,1400,1600,1800,2000,2200(mm)
According to joint length: 250,300,350,400,500,600,700,800,830,1000,1200(mm)
According to platen type: A-Parallelogram 72°; B-Rectangle 90°
According to power voltage supply: 380V, 660V,1140V
According to cool method: Fast water cooling system and nature cooling method
The standard model size:
According to joint length: 250,300,350,400,500,600,700,800,830,1000,1200(mm)
According to platen type: A-Parallelogram 72°; B-Rectangle 90°
According to power voltage supply: 380V, 660V,1140V
According to cool method: Fast water cooling system and nature cooling method
The standard model size:

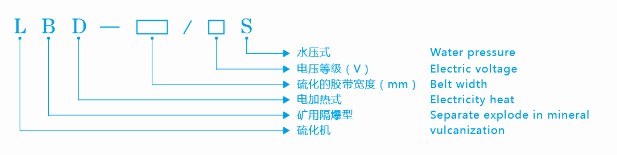

| Model Size | Applied Width(mm) | motor power(kw) | Dimension(mm) | Weight(kg) |
| LBD-800/660S | 800 | 11.2 | 1280x830x630 | 650 |
| LBD-1000/660S | 1000 | 14.1 | 1480x830x630 | 700 |
| LBD-1200/660S | 1200 | 16.5 | 1680x830x710 | 900 |
| LBD-1400/660S | 1400 | 18.6 | 1930x830x760 | 1100 |
| LBD-1600/660S | 1600 | 21.1 | 2140x830x800 | 1320 |
| LBD-1800/660S | 1800 | 23.3 | 2300x830x850 | 1480 |
| LBD-2000/660S | 2000 | 25.6 | 2600x830x950 | 1860 |
